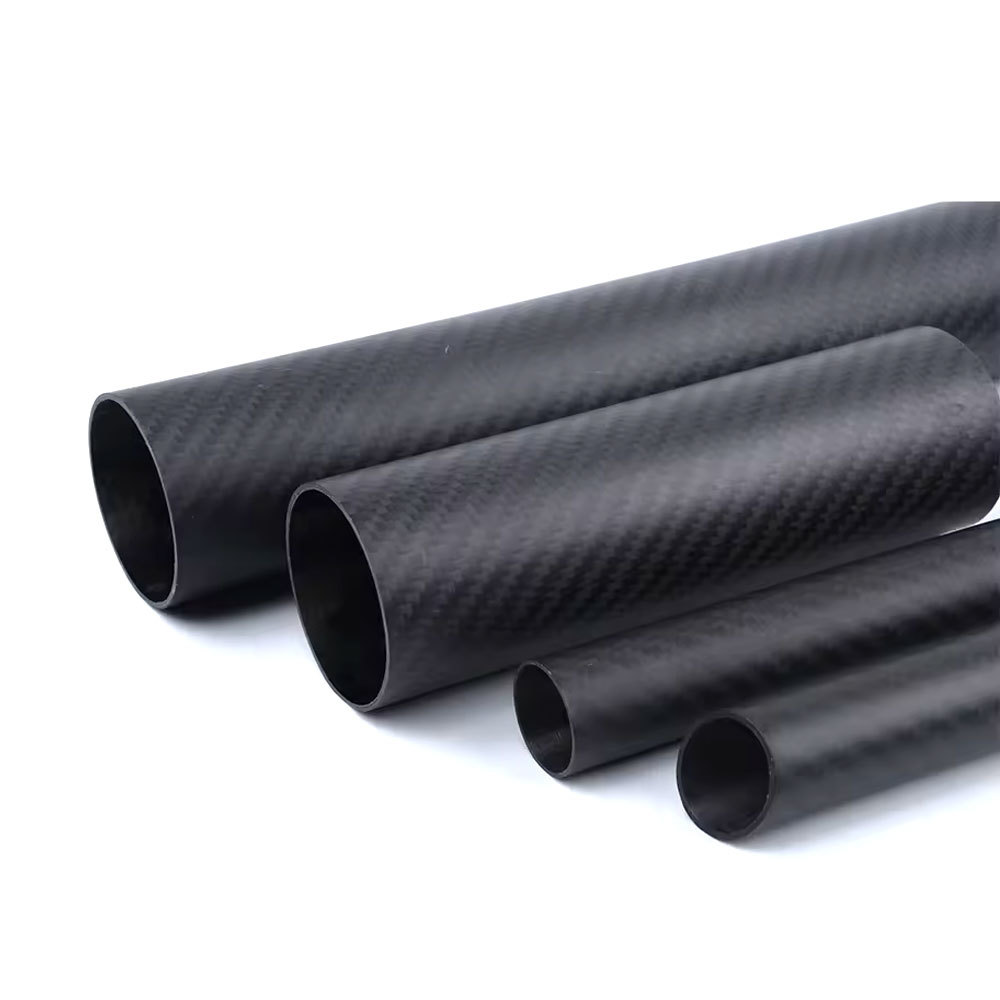

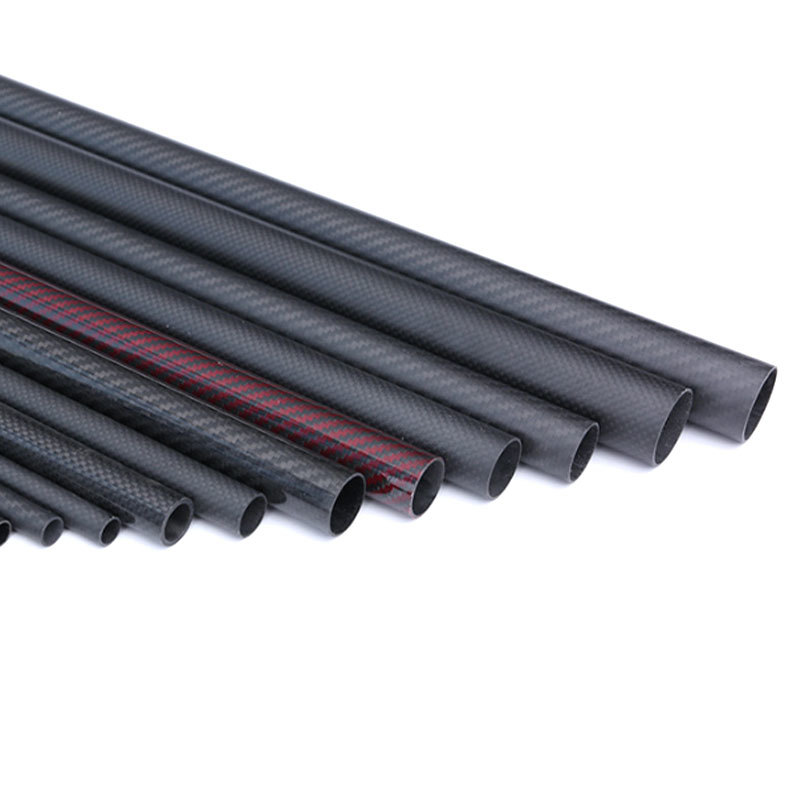

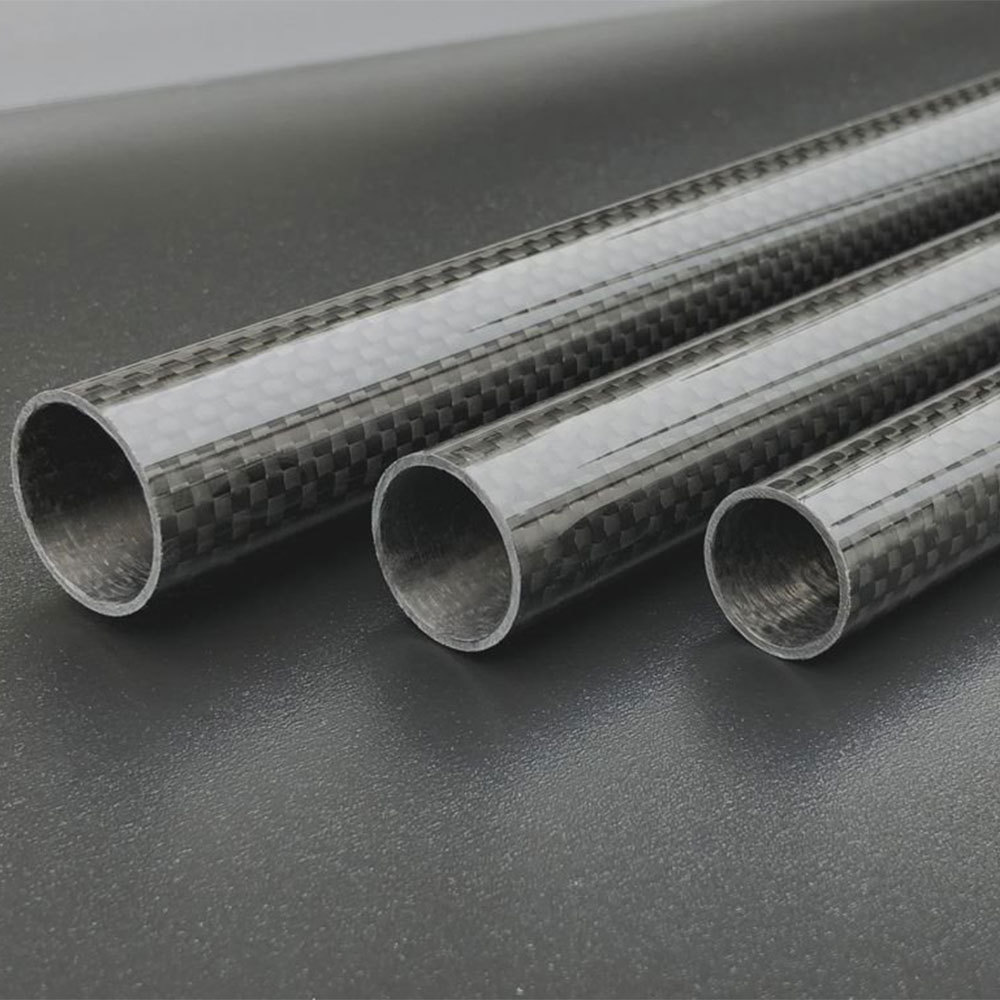

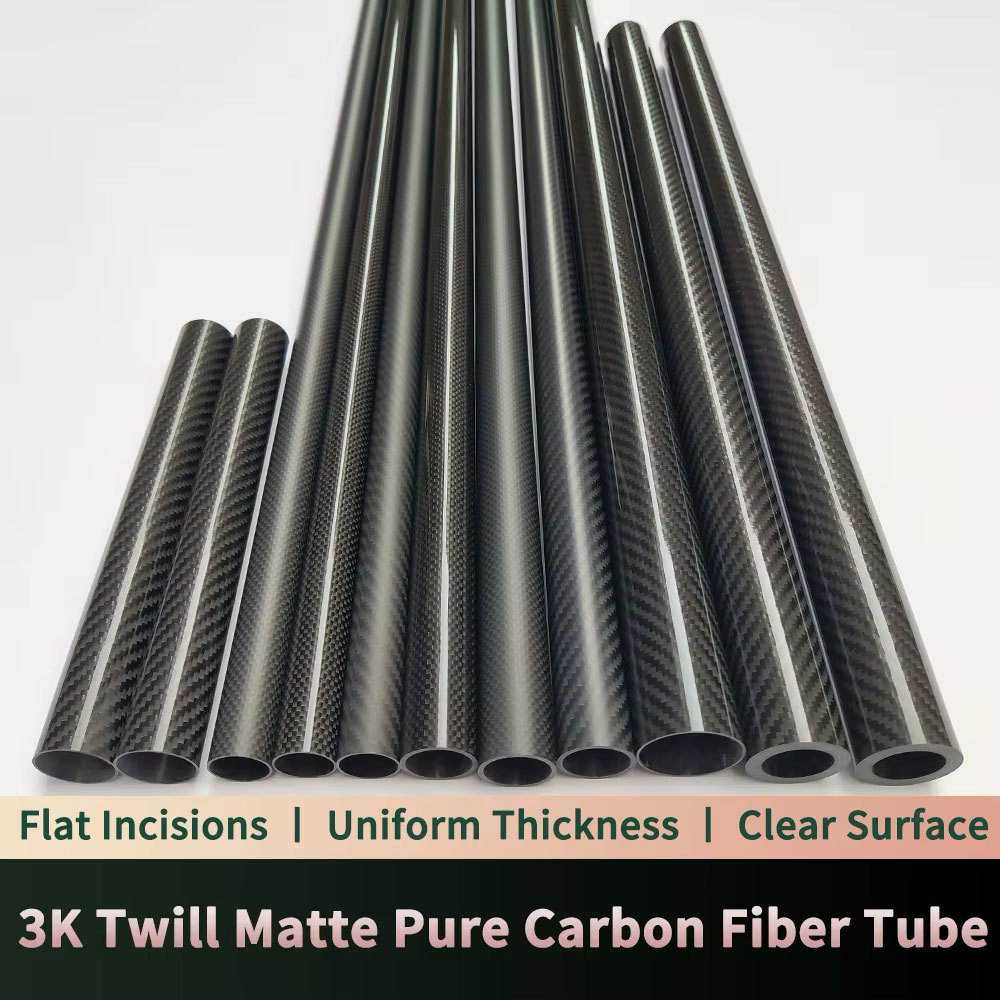

3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model
3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model
ﺎﺘﺼﻟ ﺍﻶﻧ

3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model

الحد الأدنى لكمية : قابل للتفاوض الأسعار : negotiable
تفاصيل التغليف : تعبئة الكرتون المموج العادية للشحن الدولي وقت التسليم : 7 أيام عمل بعد تلقي دفع الطلبات
شروط الدفع : T/T ، Western Union ، L/C القدرة على العرض : 1500pcs شهر
مكان المنشأ: الصين اسم العلامة التجارية: Tanku
إصدار الشهادات: SGS, ROHS رقم الموديل: OEM

معلومات تفصيلية
اسم المنتج: أنابيب من ألياف الكربون الملفوفة مادة: 3K ألياف الكربون
لون: أسود محتوى ج (٪): 30 ٪ ~ 100 ٪
OD: 6 مم بطاقة تعريف: 4/5 ملم
طول: 500mm لون: أسود

منتوج وصف

3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model



A roll-wrapped carbon Fiber Tube is a high-performance tubular structure made by wrapping multiple layers of carbon fiber fabric around a mandrel (a cylindrical mold), typically using unidirectional and woven fabrics. After wrapping, the tube is cured under heat and pressure to achieve its final strength and stiffness.

Our tube is a roll tube (Filament winding Technology), not a pultrusion tube. Roll tubes have the longitude and weft yarn, but pultrusion tubes only have the longitude, not weft yarn, so the strength is not as well as roll tubes. Carbon fiber is very lightweight; its strength is steel's 9 times, but its weight is about 1/3 that of steel!

Our roll-wrapped carbon fiber tubes are manufactured by wrapping multiple layers of 12k UD and 3k twill/plain carbon fiber prepregs around a metal mould and then cured at high temperature. The UD prepregs are used in core layers, whereas the Twill/Plain is on the surface. Based on your requirement, we can also use Kevlar and glass fiber.

Available in matte and gloss finishes, these tubes are not only good-looking but also extremely stiff and strong. Such roll-wrapped tubes are available in round, square, rectangular, hexagonal, and octagonal shapes. All these tubes are custom-made based on the client's requirements. The smallest Inner diameter is 5mm, and the longest length is 3 meters.

You could enjoy a more favorable price with a larger quantity.
  • Size: OD6mm x ID4mm/5mm x length 330mm/500mm
  • Product Name: OD mm x IDmm x length 330mm/500mm 3k Carbon Fiber Tube (Roll Wrapped)
  • Composite Material: 100% Pure Carbon Fiber
  • Weave Pattern: 3K Plain Weave
  • Dimensions (outer diameter x inter diameter x length): OD mm x ID mm x length 330mm/500mm
  • Brand of 3K Carbon Fabric: Toray Carbon (JAPAN)
  • Dry(Prepreg)/Wet: Dry (Prepreg: it had already dipped into the resin)
  • Finish: Glossy/Matt Finish (Sprayed with UV-Resistant Clear Coat)

Key Features



  • High Strength-to-Weight Ratio: Much lighter than metals like steel or aluminum while offering comparable or superior strength.
  • Excellent Stiffness: Especially along the fiber direction, making it ideal for load-bearing applications.
  • Customizable Layup: Fiber orientation can be tailored (0°, ±45°, 90°) to optimize torsional strength, bending stiffness, or impact resistance.
  • Smooth Finish: Usually comes in a glossy or matte 3K twill/plain weave outer layer for aesthetics and abrasion resistance.
  • Durability: Corrosion-resistant, fatigue-resistant, and suitable for harsh environments.

Feature

High Tensile Strength/ LowWeight/ Excellent Structural Properties/ Low Density

Resin

Epoxy Resin

Weaving

3K Plain/ Twill/ Unidirectional

OD Range

5mm-100mm

Length

Cut at any size according to the requirement

Finish

Glossy/ Matte/50% Glossy

Color

Customized Color

ODM/OEM Services

Bonding, drilling, punching, assembling with other materials, and precision CNC cutting are also available.

Applications

Sailing, Yacht, Sports Equipment, Telecommunications, Drones, Intelligent Industrial Robot, New-energy Car.....



3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 0

3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 13K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 23K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 3
