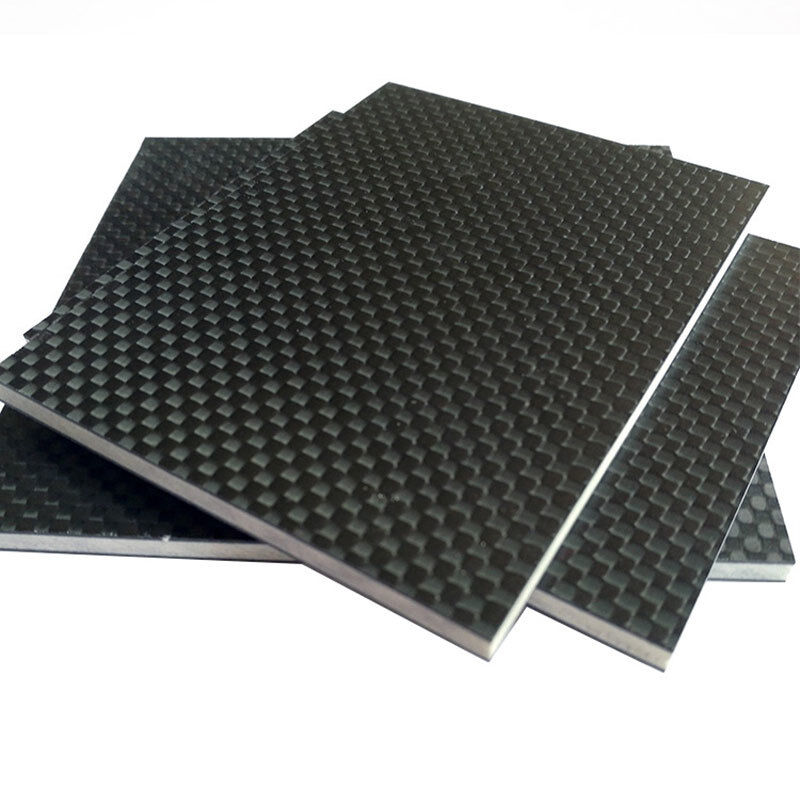

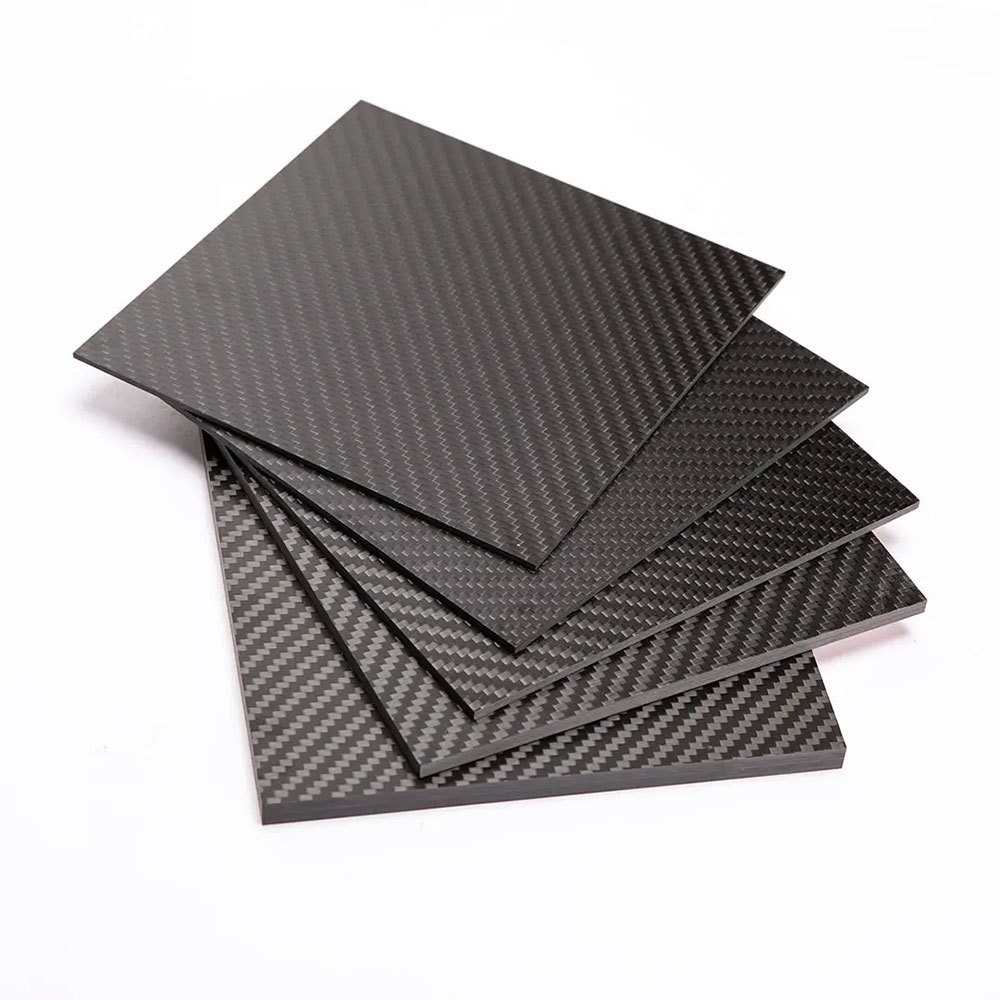

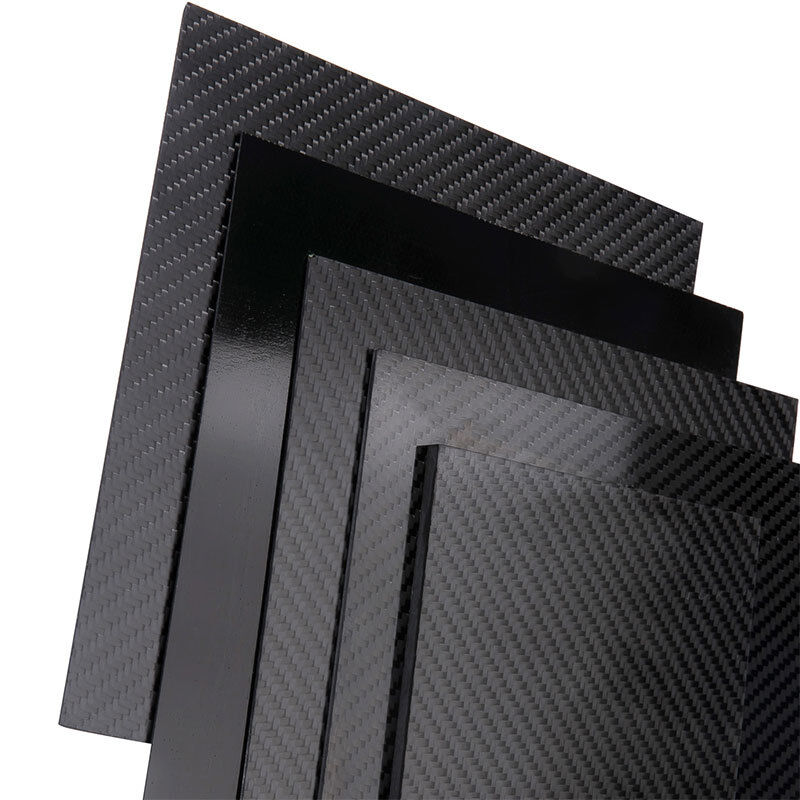

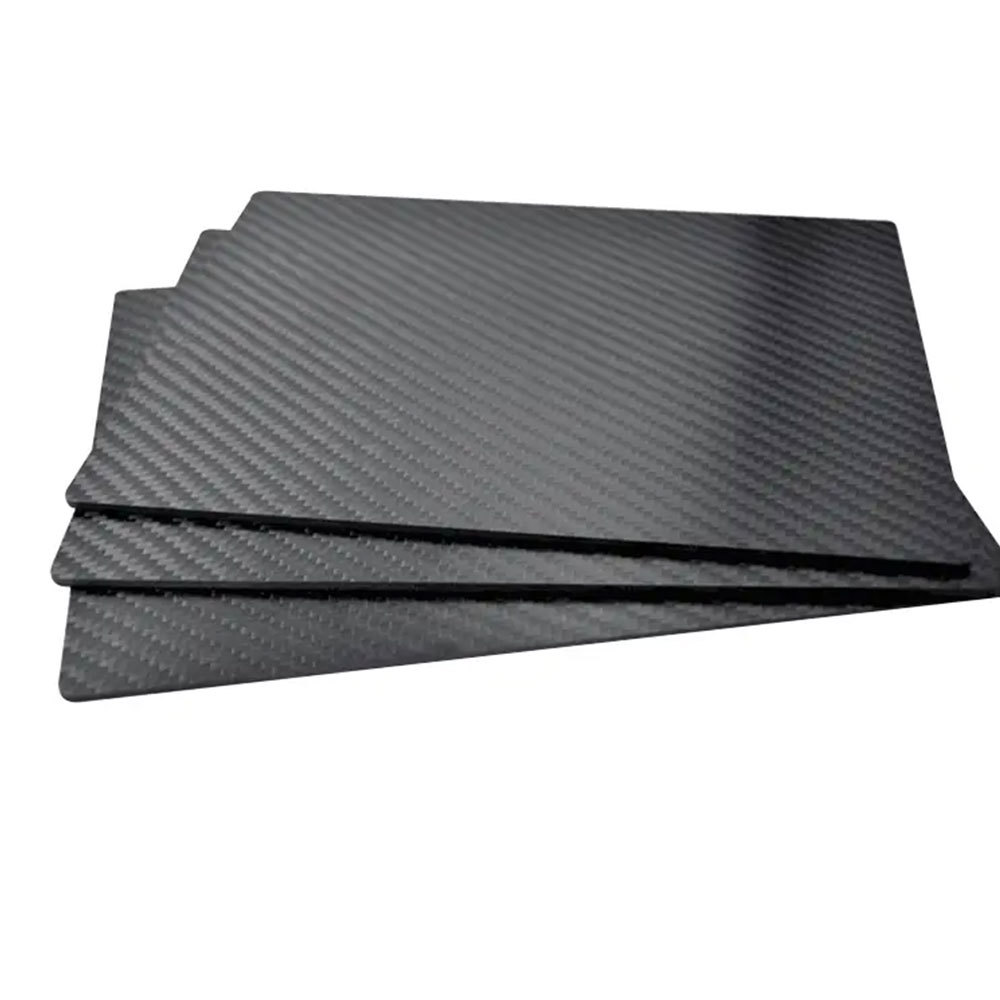

OEM High Strength 100% 3K Carbon Fiber Sheet Twill/Plain Weave Glossy Or Matte Carbon Sheet

منتوج وصف

OEM High Strength 100% 3K Carbon Fiber Sheet Twill/Plain Weave Glossy Or Matte Carbon Sheet

Custom Size Carbon Fiber Panels are precision-engineered composite laminates manufactured according to customer-specific dimensions, thickness, and machining requirements. Produced using high-strength carbon fiber fabric reinforced with premium epoxy resin systems, these panels deliver outstanding rigidity, durability, and lightweight performance.

Through advanced lamination and CNC machining processes, we provide cut-to-size carbon fiber panels with tight tolerances, smooth edges, and complex geometries. Compared with aluminum or steel, carbon fiber panels significantly reduce weight while maintaining superior structural strength and long-term dimensional stability.

Custom panels are ideal for industrial, aerospace, robotics, automotive, and high-performance engineering applications where precision and weight reduction are critical.

Custom Size Carbon Fiber Panels are high-performance composite sheets manufactured to meet exact dimensional and structural requirements. Built from multi-layer carbon fiber fabrics combined with advanced epoxy resin systems, these panels provide exceptional mechanical strength, high stiffness, and outstanding durability while maintaining extremely low weight.

Each panel can be engineered with specific fiber orientations (0°/90°/±45° or quasi-isotropic layup) to optimize load distribution and structural performance. This allows engineers to tailor strength and rigidity based on application needs, whether for static load-bearing structures or dynamic mechanical systems.

Compared to traditional metal plates, custom carbon fiber panels offer:

• Up to 60–70% weight reduction
• Higher stiffness-to-weight ratio
• Superior fatigue resistance
• Excellent vibration-damping performance
• Long-term dimensional stability under varying temperatures

Precision CNC machining ensures tight tolerances, smooth edge finishing, and complex part geometry including drilled holes, slots, recessed pockets, and countersunk features.

Mechanical Performance

• Density: 1.5 – 1.6 g/cm³
• Tensile Strength: 500 – 1500 MPa
• Flexural Strength: 600 – 1200 MPa
• Elastic Modulus: 50 – 140 GPa
• Thermal Expansion: Near zero in fiber direction

Custom Engineering Capabilities

• Custom Length × Width × Thickness
• Thin Panels (0.5mm – 2mm) for lightweight applications
• Thick Structural Plates (10mm – 50mm+) for heavy-duty use
• High Modulus carbon fiber options
• Large-format panel production
• Surface options: Matte / Glossy / Sanded / UV-resistant coating
• OEM / ODM production with drawing support

Suitable for Demanding Applications

• Industrial automation equipment
• Robotics structural frames
• UAV and aerospace structures
• Automotive lightweight components
• Medical and imaging device platforms
• Semiconductor and precision machinery

Carbon Fiber Sheet Plate Specification:
